Sale!

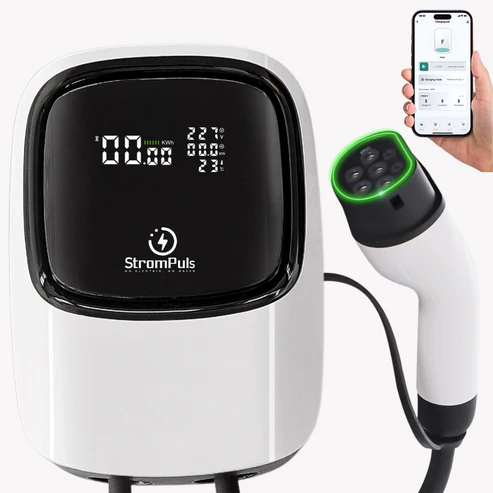

StromPuls 22KW/11kW EV Wall Charger

Original price was: ₹59,999.00.Current price is: ₹31,999.00.

Stay powered up with this sleek black StromPuls EV Charger offering

Key Specifications

Charging Type
Triple-phase 32A charging (up to 22kW peak; supports 7.4–11kW in single-phase setups)
Display
Large 4.3” touch-screen display for easy control and real-time monitoring
Cable Length
5m premium TPU cable for flexibility and reach
Amp Settings
Adjustable amp settings (6–32A) to match your power setup
Connectivity
Wi-Fi & Bluetooth connectivity for app-based scheduling, session control, and OTA firmware updates
Security
RFID reader for secure authorized access
Emergency Cut-off
Emergency stop switch for instant cut-off
Built-in Protection
Built-in Type A + 6mA DC RCD, plus full protection suite (overcurrent, surge, temperature, short-circuit)
Enclosure Rating
IP65 weatherproof housing durable and dust-tight
Fault Protection
PEN (neutral-to-earth) fault protection and integrated earthing-off safety
Warranty
5-year warranty ensuring long-term reliability
Future-Ready
OTA update support keeps your charger future-ready
Certifications
CE, TUV, IEC 61851 compliance tested and certified

Description

Model ROBO Max
Charging Power Up to 22kW (3-phase, 32A per phase)
Input Voltage 400V AC ±10%, 50/60Hz
Connector Type Type 2 (IEC 62196-2)
Charging Mode Mode 3
Connectivity Wi-Fi
Cable Type 5m Cable
Enclosure Rating IP65 (Indoor/Outdoor)
Certifications CE, RoHS, IEC
Operating Temperature -30°C to +50°C
Dimensions Approx. 380 × 240 × 120 mm
Weight Approx. 5.5 kg

Product description

Technical Specs

Model ROBO Max
Charging Power Up to 22kW (3-phase, 32A per phase)
Input Voltage 400V AC ±10%, 50/60Hz
Connector Type Type 2 (IEC 62196-2)
Charging Mode Mode 3
Connectivity Wi-Fi
Cable Type 5m Cable
Enclosure Rating IP65 (Indoor/Outdoor)
Certifications CE, RoHS, IEC
Operating Temperature -30°C to +50°C
Dimensions Approx. 380 × 240 × 120 mm
Weight Approx. 5.5 kg

Key Features

Shipping

Retrun

There are no reviews yet.

Be the first to review “StromPuls 22KW/11kW EV Wall Charger”

Your email address will not be published. Required fields are marked *
